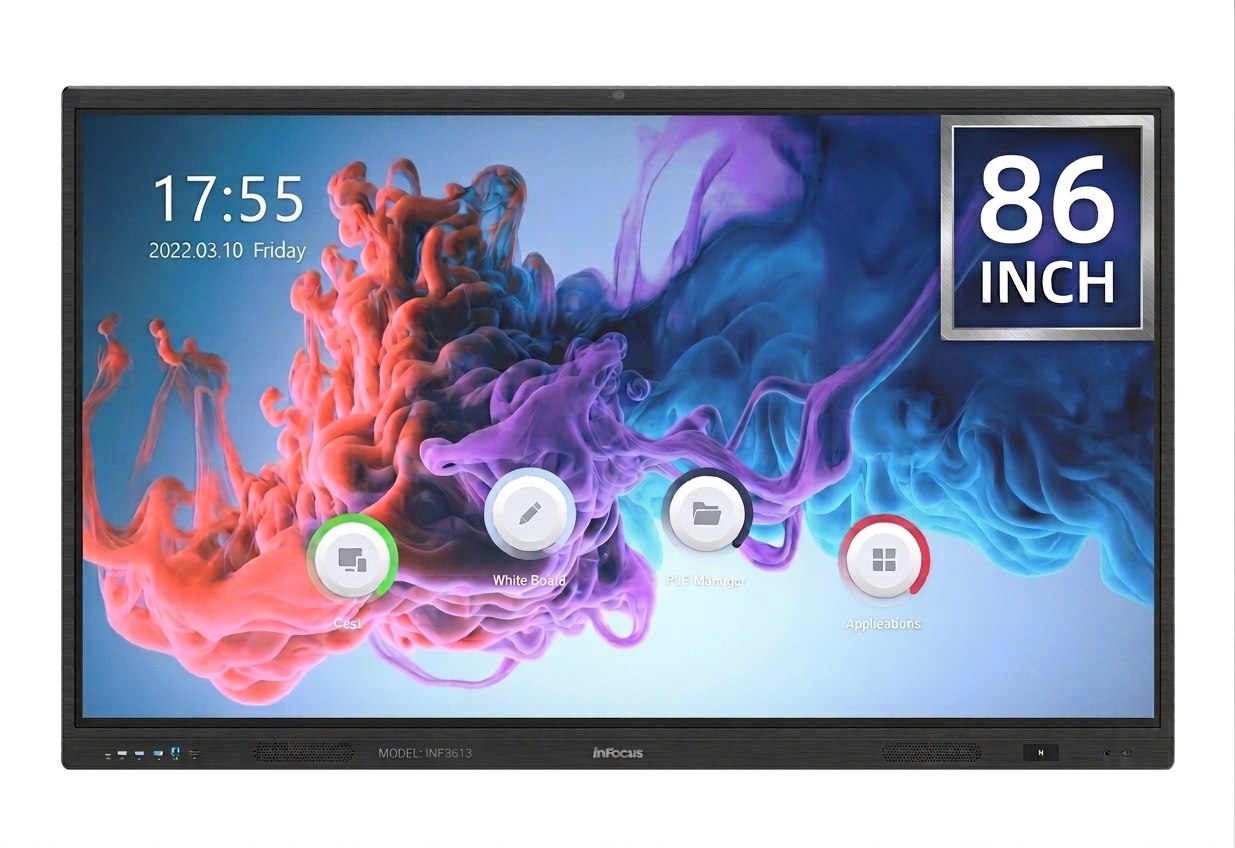

InFocus JTouch Series 13 - 86" Interactive Smart Board (IN8613) - Google EDLA, 4K UHD
InFocus • 4K UHD (3840 × 2160) • Android 13.0 (EDLA Certified) • 86" Interactive Display
Key Highlights
NPR 330,000Product Overview
The InFocus JTouch Series 13 (IN8613) is a flagship 86-inch Google EDLA-certified interactive display perfect for large smart classrooms, boardrooms, and training halls. Features massive 4K UHD resolution with Zero Bonding technology for crystal-clear visuals. Powered by Android 13 and an Octa-Core Rockchip RK3588 processor with 8GB RAM & 128GB storage for smooth multitasking. Includes advanced collaboration features: 48MP AI Camera with 120° wide angle, 8-Array Microphone with 10m pickup for exceptional conferencing. Supports infrared multi-touch with 40 points on Windows and 20 on Android. Enhanced audio with 2 × 16W main speakers plus 20W subwoofer. Premium 4mm tempered glass with 7H hardness, anti-glare and anti-fingerprint coating. Modern connectivity with Wi-Fi 6, Bluetooth 5.2, USB-C with 65W power delivery, and comprehensive port selection. Perfect for interactive learning, seamless video conferencing, and dynamic presentations in large spaces.
Technical Specifications
Performance
- CPU
- Octa-Core (4 × A76 + 4 × A55)
- GPU
- ARM Mali-G610 MP4
- NPU
- 6 TOPS AI Computing Power
- RAM
- 8 GB DDR4
- Chipset
- Rockchip RK3588
- Storage
- 128 GB eMMC
- Rear Inputs
- HDMI 2.0 ×2, DP 1.2, VGA, Audio In, RS232
- Operating System
- Android 13.0 (EDLA Certified)
Display
- Glass
- 4mm Tempered, Anti-Glare, 7H Hardness
- Brightness
- ≥450 cd/m²
- Screen Size
- 86 Inch
- Aspect Ratio
- 16:9
- Viewing Angle
- 178° (H) / 178° (V)
- Contrast Ratio
- 1200:1 (Static) | 5000:1 (Dynamic)
- Display Colors
- 1.07 Billion (10-bit)
- Display Lifetime
- ≥ 50,000 Hours
- Native Resolution
- 4K UHD (3840 × 2160)
- Display Technology
- DLED Backlight
- Surface Protection
- Anti-Fingerprint / Anti-Glare
Other specifications
- Model
- IN8613
- Series
- JTouch Series 13
- Ideal For
- Smart Classrooms, Boardrooms, Training Halls
- AI Features
- Auto-Framing, Speaker Tracking
- Response Time
- 6 ms
- Data / Control
- USB 3.0 ×2, USB 2.0, RJ45 (LAN) ×2, Touch USB
- Bonding Technology
- Zero Bonding
Camera & Audio
- Camera
- 48 MP AI Camera
- Speakers
- 2 × 16W (Main) + 20W (Subwoofer)
- Microphone
- 8-Array Microphone (10m Pickup)
- Field of View
- 120° Wide Angle
Power
- Max Power
- ≤ 320W
- Power Supply
- AC 100-240V, 50/60Hz
Physical
- Dimensions
- 1958 × 1203 × 98 mm
- Net Weight
- 75 kg
- VESA Mount
- 800 × 600 mm
- Standby Power
- ≤ 0.5W
Ports
- Front Ports
- USB-C (65W PD), HDMI In, USB 3.0 ×2, Touch USB
- Rear Outputs
- HDMI Out (4K@60Hz), Audio Out, SPDIF
Touch
- Touch Points
- 40 Points (Windows), 20 Points (Android)
- Minimum Object
- ≥2 mm
- Touch Accuracy
- ±1 mm
- Touch Technology
- Infrared Recognition
- Touch Compatibility
- Windows, Android, Mac, Linux, Chrome
- Touch Response Time
- ≤5 ms
Security
- Security Features
- Kensington Security Slot, PIN Code Lock & Timer, NFC
Connectivity
- Wireless Connectivity
- Wi-Fi 6 (802.11ax), Bluetooth 5.2, NFC Reader
Certifications
- Environmental Certifications
- RoHS, Certified Low Blue Light, Certified Flicker-Free
Delivery and Installation
Delivery, installation, training, accessories, and service options can depend on the product and destination. Contact Nepal Smart Board to confirm what is included with this model and your order.
Ideal For
Schools & Colleges
Interactive classrooms, lecture halls, and learning environments.
Corporate Offices
Presentations, meetings, and collaborative workspaces.
Training Centers
Professional training, workshops, and skills development.
